Automatically Feed Mechanism Pipe Beveling Machine Used Forbeveling Thick Pipe And Prepare For Weldingflange Faces

Name: Automatically Feed Mechanism Pipe Beveling Machine Used Forbeveling Thick Pipe And Prepare For Weldingflange Faces
Brand: SUNTECHMACH
Price: 1 USD

Buy cheap Automatically Feed Mechanism Pipe Beveling Machine Used Forbeveling Thick Pipe And Prepare For Weldingflange Faces product

Brand Name : SUNTECHMACH

Model Number : as per details

Certification : ISO9001

Place of Origin : ZHEJIANG, CHINA

MOQ : 1set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000PCS/MONTH

Delivery Time : 20days

Packaging Details : Wooden case

Name : Pipe beveling machine

Range : 80mm-820mm

Driven motor : Pneumatic and Electric, Servo motor andHydraulic optional

Power : 1.43kw

Contact Now

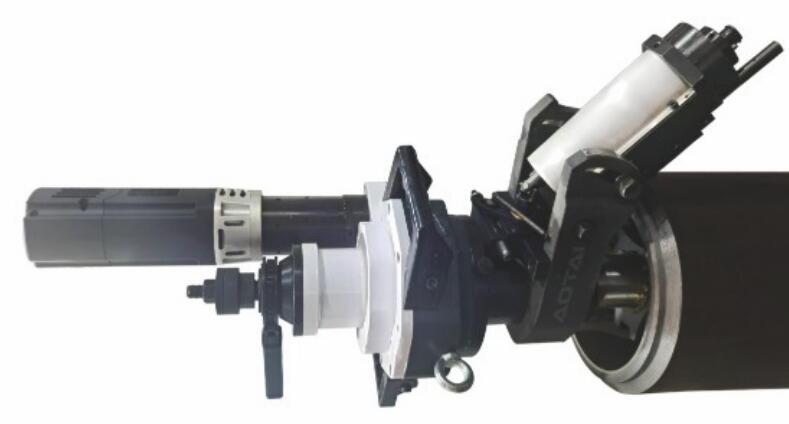

Automatically Feed Mechanism Pipe Beveling Machine Used Forbeveling Thick Pipe And Prepare For Weldingflange Faces

This machine adopts automatically feed mechanism, and the bevel angel can be adjustable. The machine can be used for beveling thick pipe and prepare for welding flange faces. With the special structure designing, the tool stroke can be fine-tuming. Auto-feeding and Manual - feeding can be easily and freely chosen.

FEATURES

Tool stoke can be fine-turing

Beveling angel adjustable 0°-37°

Manual feed and Automatic feed optional

Beveling shape: U, Single-V, double-V,Jbeveling
4 model, range for pipe ID: 80mm-820mm

Pneumatic and Electric, Servo motor andHydraulic optional

Technical Parameter

Model		Working Range	thickness	Power	Rotation
Electric	Pneumatic	ID mm	mm	kw	rpm
ISY-250-II	TCM-250-II	φ80-240	≤75	1.43	16
ISY-351-II	TCM-351-Ⅱ	φ150-330	≤75	1.43	10
ISY-630-II	TCM-630-Ⅱ	φ300-600	≤75	2	8
ISY-850-II	TCM-850-II	φ600-820	≤75	2	7

POWER SUPPLIES:

Electric: 1.43kw 2.0kw@220~230V 50~60Hz,1P

Pneumatic: 1500~2000L/ min@0.63~0.8MPa

Automatically Feed Mechanism Pipe Beveling Machine Used Forbeveling Thick Pipe And Prepare For Weldingflange Faces

Material: M42

size: 30*45*12mm,

Angle: 30°

Automatically Feed Mechanism Pipe Beveling Machine Used Forbeveling Thick Pipe And Prepare For Weldingflange Faces

Automatically Feed Mechanism Pipe Beveling Machine Used Forbeveling Thick Pipe And Prepare For Weldingflange Faces Images
